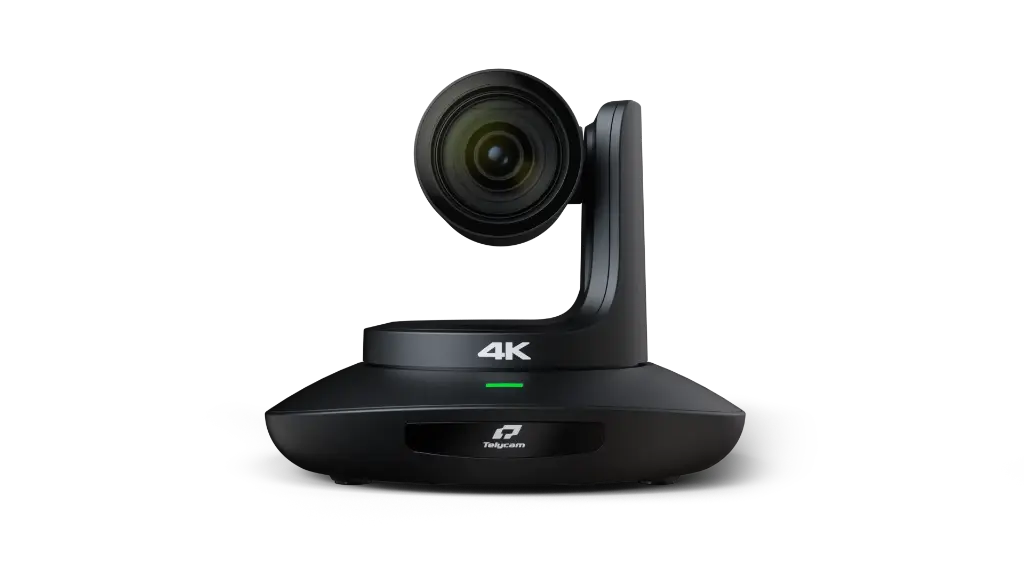

Telycam Vision+ SE 12X NDI®|HX2, 3G-SDI, USB, Line In, 2160p

https://www.sagadisplays.eu/web/image/product.template/21455/image_1920?unique=510dc28

Login | Register to see price

Not Available For Sale

  • Manufacturer
  • Colour
  • Valgfri videoutgang
  • XXX - Ai Autotracking
  • XXX - Modellserie

This combination does not exist.

10 dager til lager ​

Contact Us
Telycam
Telycam

Telycam utvikler avanserte videokameraer som forbedrer samhandling, kommunikasjon og samarbeid. Med innovative PTZ-kameraer og webcams optimalisert for direktesending, streaming og videokonferanser, leverer Telycam brukervennlige og pålitelige løsninger for profesjonelle miljøer.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Optics & Imaging

SpecificationDetails
Image Sensor1-inch, 9MP UHD CMOS sensor
Optical Zoom20x optical zoom
Lens f = 9.79186.5mm, F2.8F4.5
Field of View (Horizontal)71° (Wide) to 4.05° (Tele)
Field of View (Vertical)39.6° to 2.2°
Field of View (Diagonal)78.5° to 4.6°
Minimum Working Distance (Wide)15 cm
Minimum Working Distance (Tele)150 cm
Signal-to-Noise Ratio (S/N)≥50dB

Video Output & Streaming

SpecificationDetails
HDMI 2.0 OutputUp to 4K 60 fps
3G-SDI OutputUp to 1080p 60 fps
NDI®/NDI®HX Output
USB Type-C OutputUp to 4K 30 fps
IP Streaming CodecH.264, H.265
Bitrate ControlVBR, CBR
Bitrate Range1024Kbps~122800Kbps
Network Port Speed1000 Mbps
Streaming Protocols NDI®,NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC



Image Processing

SpecificationDetails
Noise Reduction2D & 3D
Minimum Illumination0.5 Lux (50 IRE Max AGC, 1/30, F1.8)
White Balance ModesAuto, Manual, ATW, Push, Indoor, Outdoor, Color Temperature
Exposure ModesAuto, Manual, Shutter Priority, Iris Priority, Brightness Priority
Anti-Flicker OptionsOFF, 50Hz, 60Hz
Image Flip/MirroringSupported
Focus ControlAuto/Manual
Iris ControlAuto/Manual
Electronic Shutter ControlAuto/Manual
Gamma CorrectionSupported
Backlight CompensationSupported

Pan, Tilt & Control

SpecificationDetails
Pan Rotation Angle-176° to +176°
Tilt Rotation Angle-90° to +90°
Pan Speed Range0.1° to 80°/s
Tilt Speed Range0.1° to 60°/s
Number of Presets (Remote)10
Number of Presets (Serial Port)256
Control InterfacesRS232, RS485, RS422, RJ45, USB

Connectivity & I/O

SpecificationDetails
Video Output PortsHDMI 2.0, 12G-SDI, 3G-SDI, SFP+, USB Type-C
Audio Input (Mini XLR)With phantom power
Audio Input (Stereo 3.5mm Line-In)Supported
Tally LightSupported
Daisy Chain SupportYes

Power & Environmental

SpecificationDetails
Power Input VoltageDC 12V
Power over Ethernet (PoE++)IEEE802.3bt Supported
Operating Temperature-10℃ to 50℃
Operating Humidity≤80%

Physical & Design

SpecificationDetails
Dimensions (L×W×H)232.5mm × 264mm × 269mm
Net Weight4.6 kg (10.15 lbs)
Color OptionsBlack, White

Brand
Manufacturer Telycam
XXX - Modellserie Vision+
Description
Colour Black or White
Technical
Valgfri videoutgang HDMI 2.0 or 3G-SDI
XXX - Ai Autotracking True
